DESIGN FOR YOUR COMFORT
DESCRIPTION SPECIFICATION
MODEL NO ARLES
DIMENSION 2000*2000*830 MM
CAPACITY 6 persons
CONTAINER LOAD 6sets/20GP; 14sets/40HQ
MATERIAL US Aristech Acrylic
WEIGHT 350 KG Dry weight
CUSTOM MADE SUPPORT
VOLTAGE & HERTZ 220V/380V & 50/60HZ
MAX POWER CONSUMPTION 6000W
MINIMUM ORDER QUANTITY 1 PCS
WARRANTY 5 YEARS
CERTIFICATION CE/TUV/SAA/SASO
ACRYLIC ARISTECH
JETS TOTAL 33 PCS
WATER PUMP 1*2.0HP+1*1.0HP
CIRCULATION PUMP 1*1.0HP
AIR PUMP -
HEATER 3KW
SYSTEM BALBOA&GECKO
LED LEVEL LIGHT YES
INSULATION ACRYLIC:18-20MM SKIRTING: 25MM
ABS BOTTOM YES
SUPPORT FRAME STAINLESS STEEL
OZONE YES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
MODEL: ARLES
Choose Your Colors
attrbigpic
attrbigpic
attrbigpic
attrbigpic
attrbigpic
attrbigpic
Acrylic Color
1
attrsmallpic
Silver / White Marble
2
attrsmallpic
White
3
attrsmallpic
Oyster Opal
4
attrsmallpic
Odyssey
5
attrsmallpic
Oceanwave Opal
6
attrsmallpic
Midnight Opal
Actual colors and product may differ from on-screen representation. Please see your local dealer to verify.
THE UNIQUESNESS OF OUR SPA
FULL OF HUMANIZED DESIGN
FASHION&BEAFUTIFUL&LUXURY
FEATURE OF SPA
FEATURE OF SPA
ERGONOMICALLY DESIGNED
ERGONOMICALLY DESIGNED
EXTRA INSULATION
EXTRA INSULATION
QUALITY STANDARD
QUALITY STANDARD
DISTINCTIVE FEATURES OF DIFFERENT SPAS

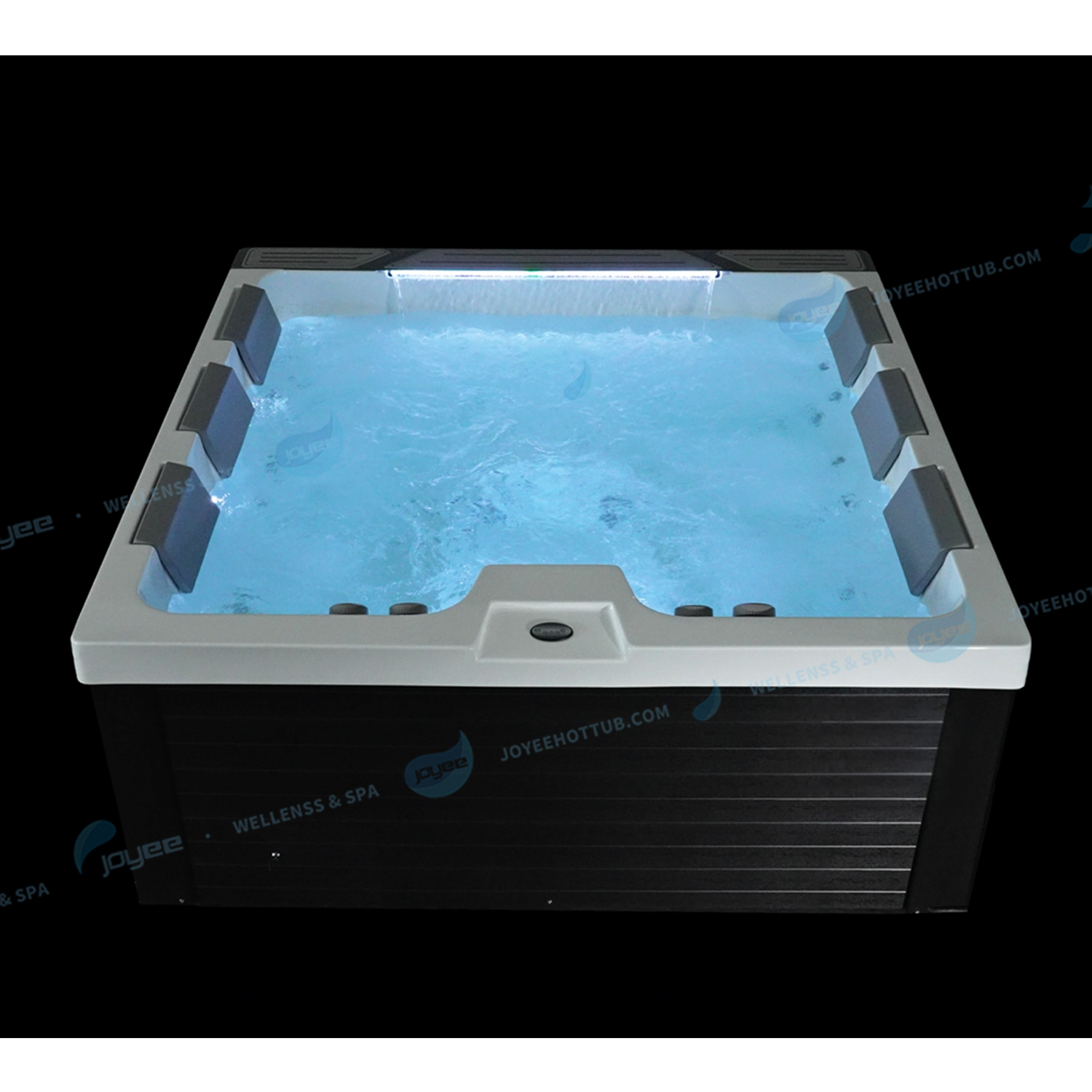

The ARLES Spa is a competitively positioned outdoor hot tub designed for dependable performance and flexible project applications.

Manufactured with durable acrylic and integrated with a stable control system, Arles ensures consistent operation and straightforward temperature and jet control. The spa features 33 strategically arranged jets, delivering a balanced and efficient hydrotherapy experience. 8 LED level lights and 1 underwater light provide subtle visual enhancement while maintaining functional simplicity. With dimensions of 2000 × 2000 × 830 mm, Arles offers a practical and space-efficient configuration, ideal for residential use and value-focused commercial installations.

We are a professional OEM spa manufacturer focused on quality and reliability. Each spa is produced in a modern facility with strict attention to durability, system efficiency, and consistent performance, ensuring long service life and stable operation.





\

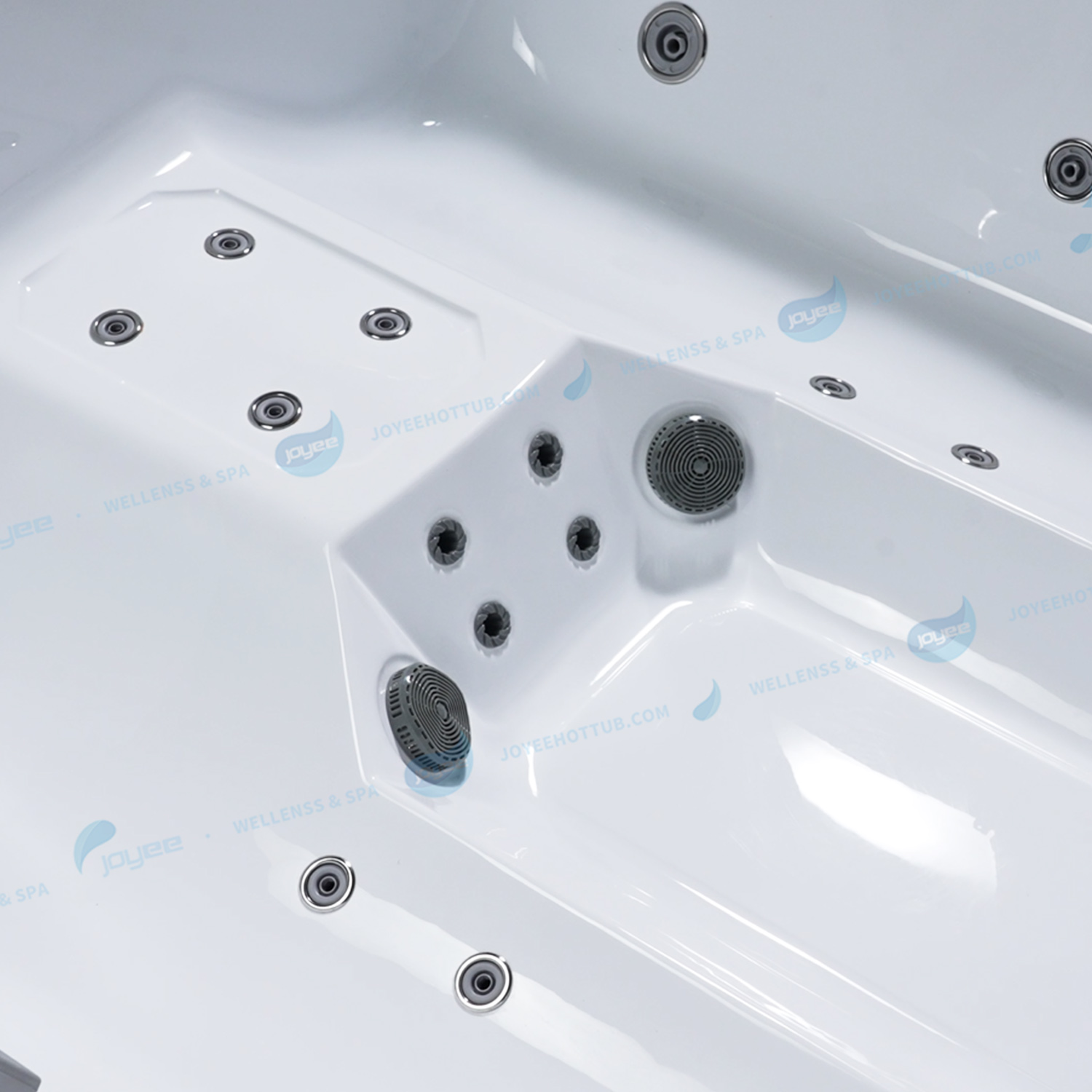

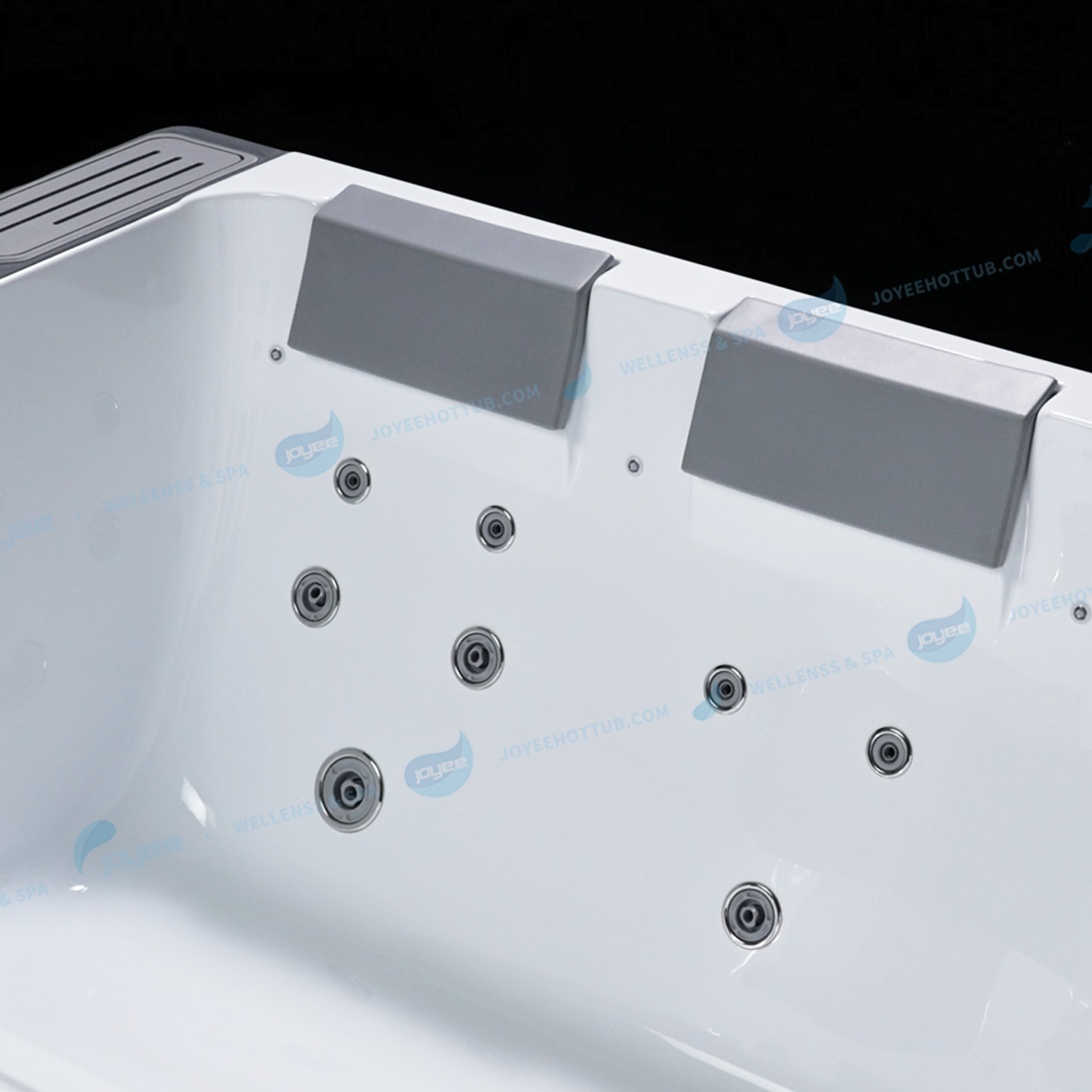

ERGONOMICALLY DESIGNED SEATS
AND LOUNGER
JOYEE Spa is committed to creating hot tubs that combine modern design, powerful hydrotherapy, and lasting comfort. Each spa features ergonomically designed seats and loungers with strategically placed massage jets to deliver effective full-body relaxation and stress relief. Built with a strong focus on quality, durability, and innovation, our hot tubs provide reliable performance for residential use, hotels, villas, and commercial wellness projects.

Experience the benefits of dynamic hydrotherapy and discover a more comfortable way to relax with JOYEE Spa.
JOYEE Spa massage Tubs.


SCANDINAVIAN EXTRA INSULATION
At JOYEE, we understand that every customer has different requirements, project conditions, and budget considerations, so we offer flexible optional packs that allow you to customize your spa configuration according to your specific needs. Based on your priorities, you can choose bottom base insulation, a thicker insulated spa cover, or a combination of both, ensuring a solution that balances performance and investment efficiency.

These optional upgrades are designed to work as part of an integrated thermal system, improving heat retention, reducing energy loss, and helping the spa maintain a stable and comfortable water temperature in different environments. Combined with our draught-proof cabinet design and engineered insulation structure, they provide reliable performance and consistent efficiency in daily use.With this flexible approach, JOYEE delivers not only a spa, but a tailored solution that adapts to different markets and applications, offering better energy efficiency, practical cost control, and a more comfortable spa experience for residential and commercial projects.

JOYEE outdoor spa workshop.


ABOUT OUR QUALITY
At JOYEE Spa, we design and manufacture hot tubs and swim spas with a strong focus on structural integrity, insulation performance, and long-term energy efficiency. Each spa is built with an 18–20 mm foam insulation layer around the shell, and this thickness can be customized according to different climate conditions and project requirements. Tinfoil skirting insulation is applied to further reduce heat loss, while an optional full bottom base insulation system helps block thermal loss from the ground and improve overall energy retention. To enhance heat preservation even further, an optional 10–15 cm extra-thick insulated spa cover is available, working together with the insulation system to maintain stable water temperature and reduce energy consumption.

At the same time, the structure is engineered for durability and stability, using a high-strength 304 stainless steel frame to ensure reliable load-bearing performance over long-term use, combined with an ABS base that is moisture-proof, anti-corrosion, and insect-resistant to protect internal components in different environments. Inside the system, a leak-proof pipe layout is applied together with stable Balboa or Gecko control systems to ensure consistent operation and easy maintenance, while a draught-proof cabinet sealing design helps further stabilize internal temperature and improve overall efficiency.

Together, these elements work as one integrated system, allowing JOYEE hot tubs to deliver reliable performance, strong thermal efficiency, and a comfortable spa experience for both residential and commercial applications.
JOYEE hot tub.


OUR ADVANTAGES
OUR ADVANTAGES
Automated Manufacturing System
JOYEE Spa operates a highly automated production system, with advanced equipment covering thermoforming, fiberglass reinforcement, and precision assembly processes. With up to 73% automation across key stages, we ensure stable output, improved efficiency, and consistent product quality for both standard models and fully customized spa projects.
Scandinavian Insulation System
JOYEE's advanced Scandinavian insulation system combines high-density foam with multi-layer thermal protection to maximize heat retention. The energy-efficient design helps maintain stable water temperatures, reduce heating time, and lower long-term operating costs in all climates.
Reliable Structural Frame
Each JOYEE spa is built with a high-strength stainless steel frame to ensure long-term structural stability. Combined with a moisture-resistant base design and reliable Balboa\Gecko control system integration, the spa delivers stable operation, smooth water circulation, and consistent performance for residential and commercial use.
Premium USA Aristech Acrylic
JOYEE selects premium USA Aristech acrylic for every spa shell, delivering exceptional durability, UV resistance, and long-lasting color retention. The smooth, non-porous surface is easy to clean, highly resistant to scratches and chemicals, and maintains its premium appearance after years of outdoor use.
Product Support

ARLES Spa FAQ

Expert answers about our 6 persons outdoor hot tub series.

What makes the ARLES spa shell more durable than standard tubs?

The ARLES model uses premium USA-imported Aristech Acrylic, reinforced with high-density fiberglass. This combination offers superior UV resistance and prevents fading or cracking, ensuring a high-gloss finish that lasts even in harsh outdoor environments.

Which control systems are used in the ARLES series?

We equip the ARLES with world-leading Balboa (USA) or Gecko (Canada) control systems. These systems are globally recognized for their stability, user-friendly interfaces, and the ease of finding local maintenance support in over 100 countries.

How does the 33 jets configuration enhance the massage experience?

Our 33 hydrotherapy jets are ergonomically positioned to target key pressure points on the neck, back, and legs. Powered by 2HP+1HP high-performance water pumps, it delivers a powerful yet adjustable deep-tissue massage for all 6 occupants.

Is the ARLES hot tub energy-efficient for cold climates?

Yes. Every unit features high-density PU insulation foam. For extreme climates, we offer an optional "Scandinavian Extra Insulation" package, which includes a 10-15cm thickened cover and base insulation to significantly reduce heat loss and electricity costs.

What OEM/Wholesale customization options are available for this model?

As a leading manufacturer, JOYEE supports extensive customization for the ARLES model, including acrylic colors, skirting materials, jet upgrades (stainless steel), and custom branding/logos. We also optimize container loading, fitting 14 sets in a 40HQ container to maximize your shipping ROI.

OUR QUALITY
QUALITY FIRST
BEST HOT TUB MANUFACTURER IN CHINA
Spa Vacuum Forming Machine
As a professional hot tub manufacturer, we utilize advanced Spa Vacuum Forming Machine to ensure precise process control and uniform pressure during acrylic forming. Combined with high-quality Aristech acrylic sheets, this process produces a smooth, seamless one-piece shell with consistent thickness and enhanced structural strength, supporting long-term durability and stable production quality.

JOYEE acrylic hot tub.
Yaskawa Drilling Robot
At JOYEE, our state-of-the-art robotic drilling system, powered by Yaskawa, is engineered for high-capacity spa manufacturing. The automated system intelligently scans and identifies optimal hole positions, executing drills with impeccable speed and depth before deburring edges in a single, continuous workflow. Perfected for large-scale OEM orders, it guarantees uniform quality, flawless finishes, and unmatched repeatability across every batch.

JOYEE acrylic hot tub.
Electric and Water Pipe Inspection
Electrical and plumbing systems are essential to the performance and reliability of hot tubs and swim spas. At JOYEE, special attention is given to the plumbing system, where high-quality piping layouts are precisely engineered to ensure smooth and efficient water circulation throughout the entire spa. All water lines are assembled using imported blue PVC glue for strong and secure bonding, while reinforced stainless steel clamps are applied at key connection points to enhance sealing performance and prevent leakage. This well-structured plumbing system ensures long-term stability, consistent water flow, and reliable operation in all usage conditions.

JOYEE OEM spa hot tub.
